TZS 205,000
In stock

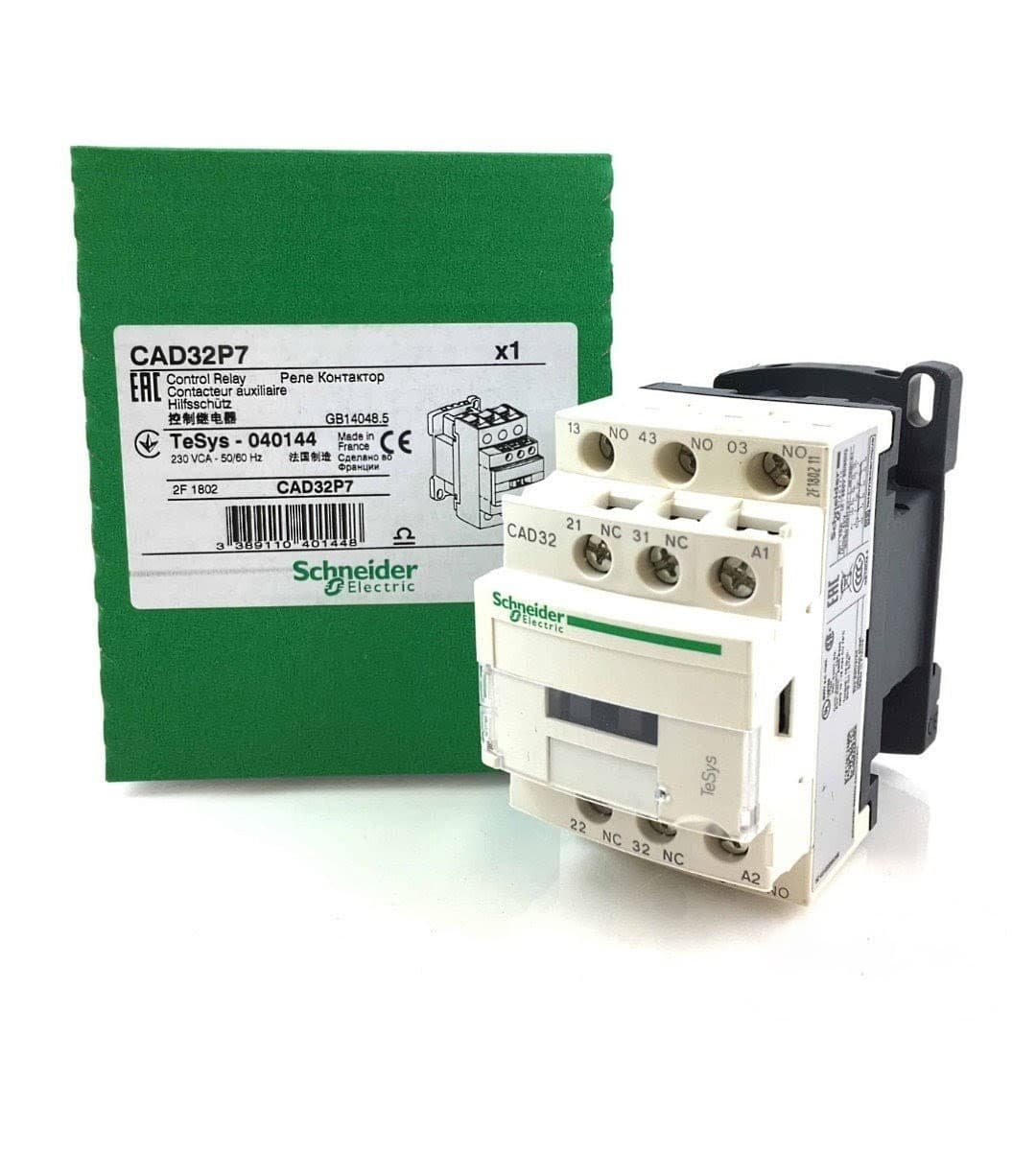

Schneider Electric CAD32P7 control relay, part of the TeSys Deca (formerly TeSys D) product line. This industrial-grade relay is designed to control electromagnetic loads like auxiliary contactors and signaling circuits in automation panels. Key Technical Specifications Model Number: CAD32P7 Coil Voltage: 230V AC at 50/60 Hz Contact Configuration: 3 NO (Normally Open) + 2 NC (Normally Closed) Thermal Current (Ith): 10 A Rated Insulation Voltage (Ui): 690 V (conforming to IEC 60947-5-1) Mounting: Compatible with standard 35 mm DIN rails or direct plate mounting via screws Durability: High mechanical life of approximately 30 million cycles Features and Usage Termination: Uses standard screw clamp terminals for secure wiring. Expandability: The base 5-pole relay can be expanded to 11 poles by adding top or side-mounted auxiliary contact blocks. Standard Compliance: Certified to global standards including IEC, UL, CSA, CCC, and EAC. Common Applications: Widely used in motor starters, interlocking functions, and power management systems. This relay is widely available through industrial suppliers and major online retailers: like BONHOMES LTD +255 712 868686 +255 785 868686
