TZS 56,000
In stock

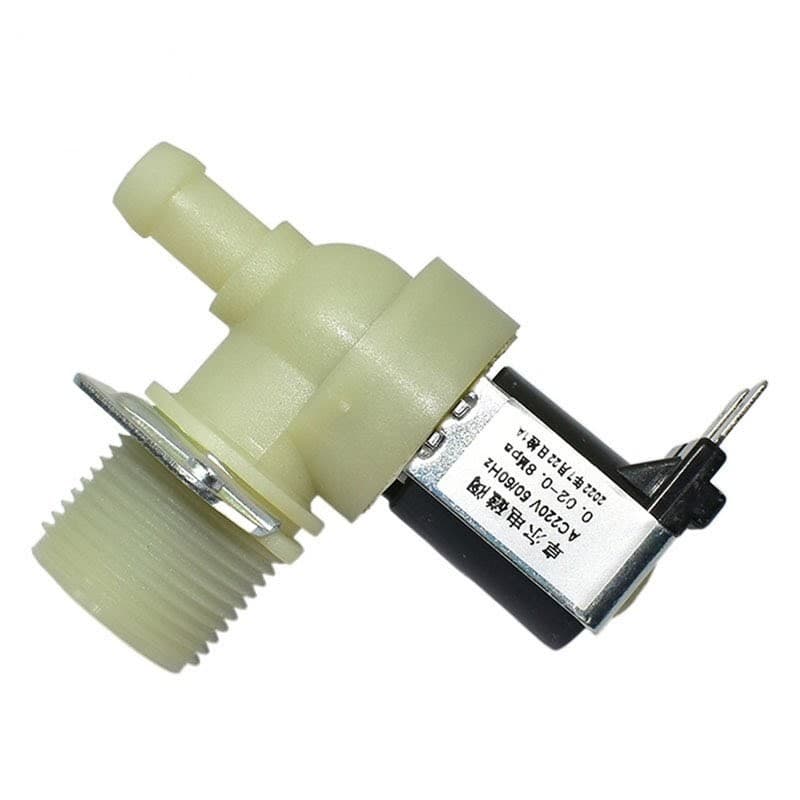

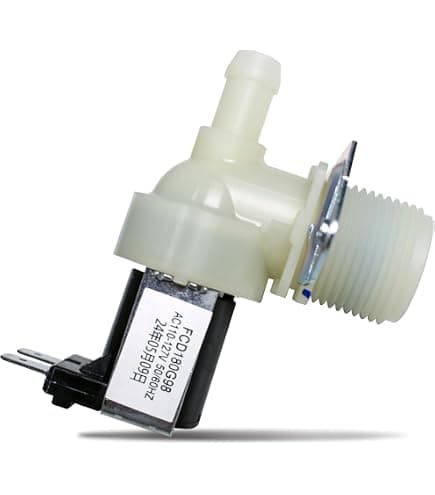

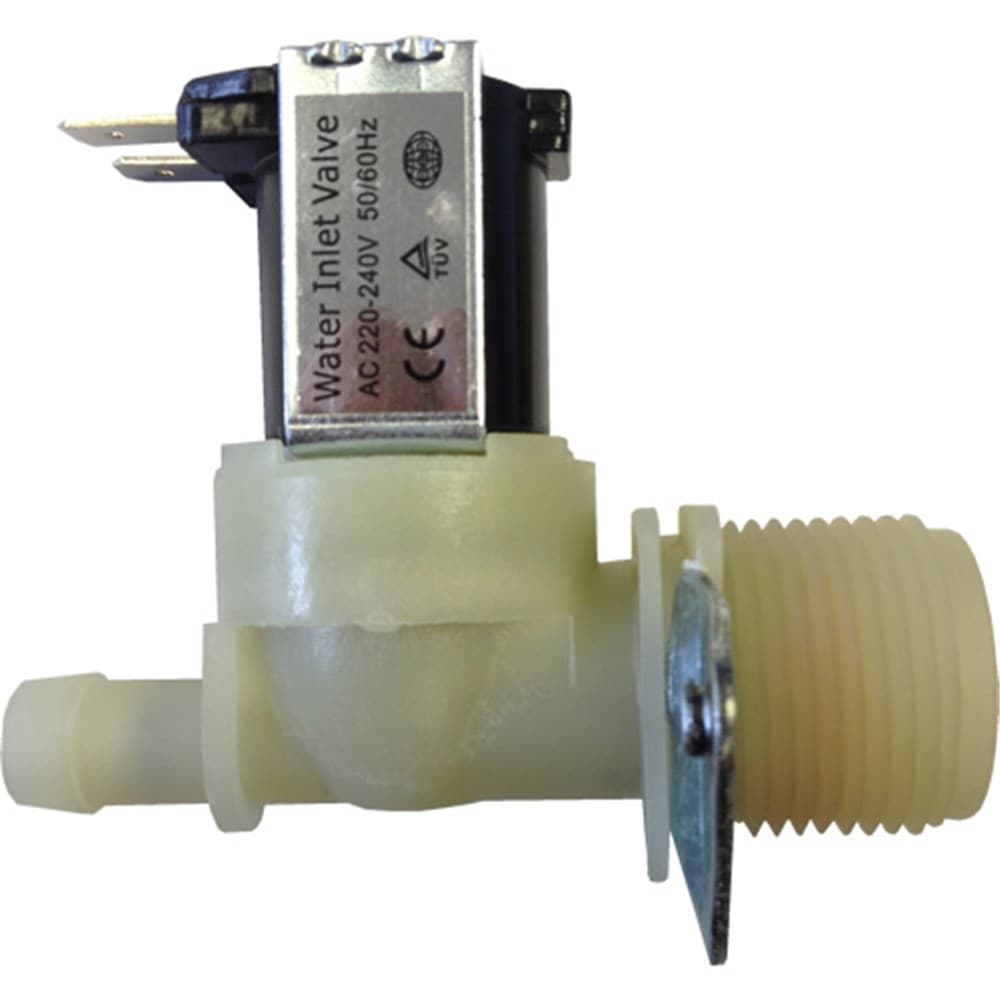

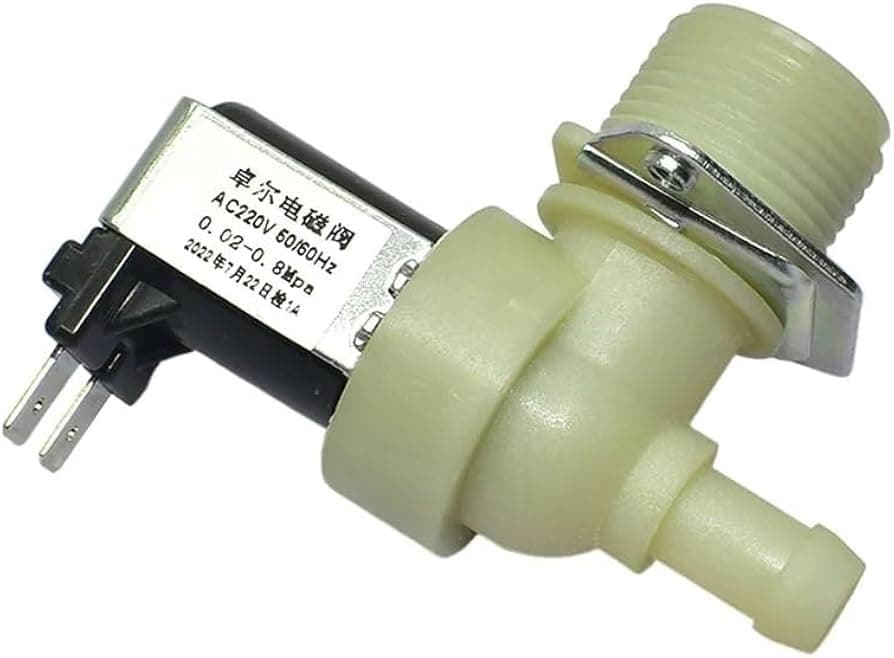

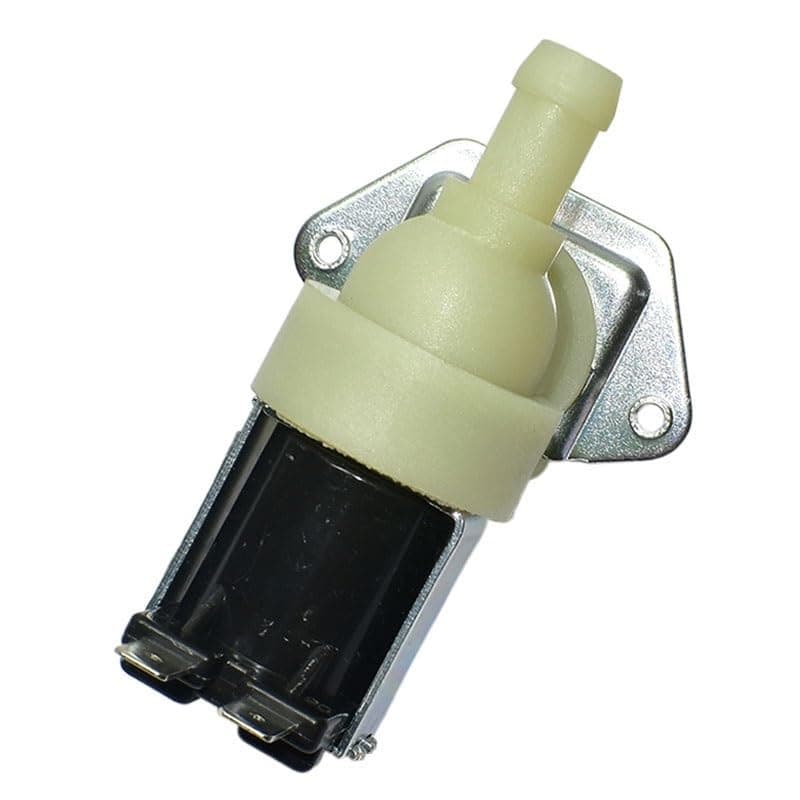

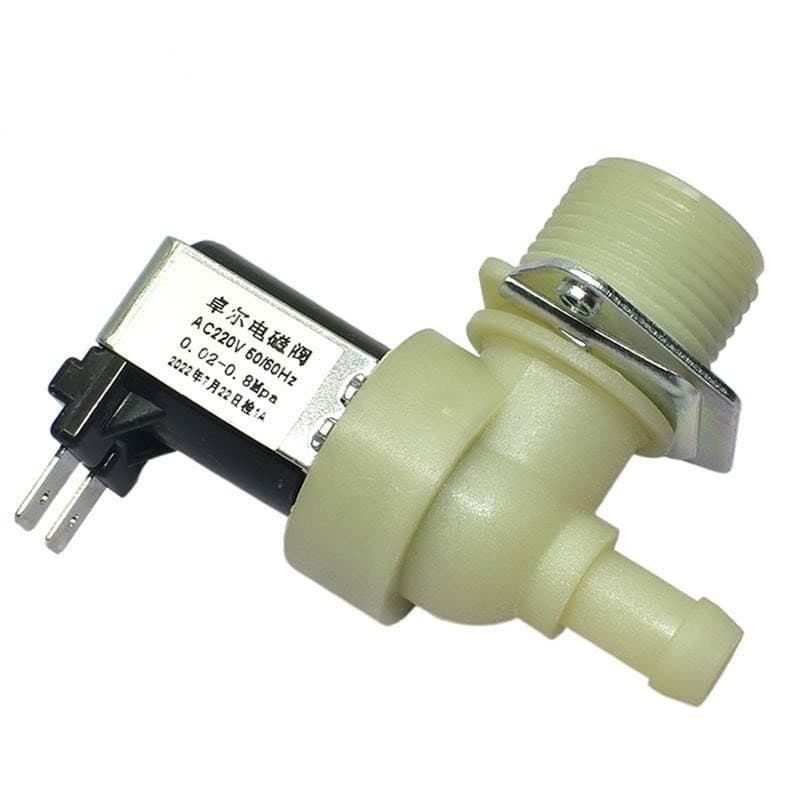

FPD180G68 Water/Liquid inlet solenoid valves. These are single-nozzle electric pilot-operated valves commonly utilized as replacement parts in automatic household appliances. Core Technical Specifications Model Number: FPD180G68 (FPD180G series) Operating Voltage: AC 220V–240V Frequency: 50/60 Hz Structure Type: Normally Closed (NC) electrical solenoid Primary Applications Washing Machines: Most frequently compatible as a direct replacement part for Haier drum washers. They are also universally used in some Midea, Little Swan, or Samsung appliances if dimensions match. Other Appliances: They can also regulate water input for certain commercial ice makers, dishwashers, and water dispensers. Functionality When the appliance's main board sends a 220–240V AC electrical signal to the metal terminal prongs, the internal electromagnetic coil energizes. This lifts the internal pilot membrane, allowing water from the main line connection to flow through the 90-degree exit nozzle into the machine. When power stops, the valve snaps shut via spring tension to prevent flooding. By BONHOMES LTD
